Switch KVM VGA/Audio 4 USB ports - Aten IDATA CS- 64 US

Aten CS 64 US is a big step forward compared to the cabled KVM models of the Petite series, offers integrated cables, USB device sharing and a firmware update feature that allows you to have the most recent versions available.

In addition, the CS 64 US has improved DynaSync™ Video technology, which provides the Display Identification Data (Extended EDID) of the monitor to optimize the display resolution. The CS 64 US also provides multiplatform support and computer choice through the hotkeys to offer the most advanced desktop ` comfort.



Features

• A USB console that controls four USB computers


• Compact design, integrated 0,9 / 1,2 m cables


• Select shortcut keys for operating system and keyboard language


• Computer selection via shortcut keys

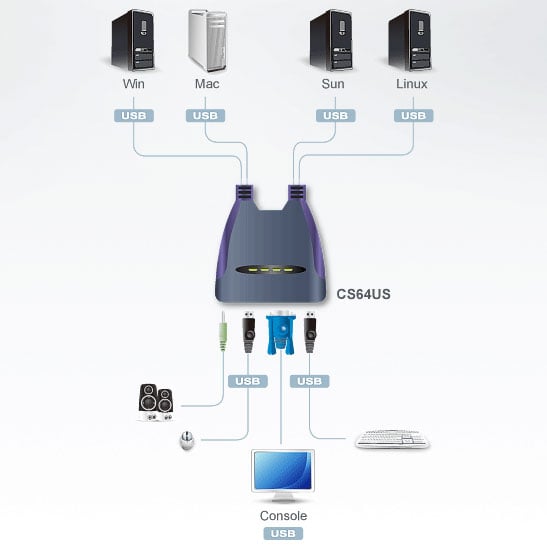

• Multiplatform support - Windows, Linux, Mac, Sun


• DynaSync™ Video - ATEN exclusive technology that eliminates screen boot problems and optimizes resolution when ports are changed


• Possibility to use USB mouse port for USB hub 1.1 and USB peripheral sharing 1.1


• Supports multifunction and wireless keyboards and mouse


• Full design


• With loudspeaker support


• Superior video quality – up to 2048 x 1536; DDC 2 B


• Automatic scanning function to monitor the functioning of the computer


• Not powered


• Sun/Mac keyboard support and emulation*


• Updated Firmware



* 1. PC keyboard combinations emulating Sun/Mac keyboards

2 . Sun/Mac keyboards only work with their computers



Technical specifications:

• Computer connections: 4


• Select Port: Shortcut Key

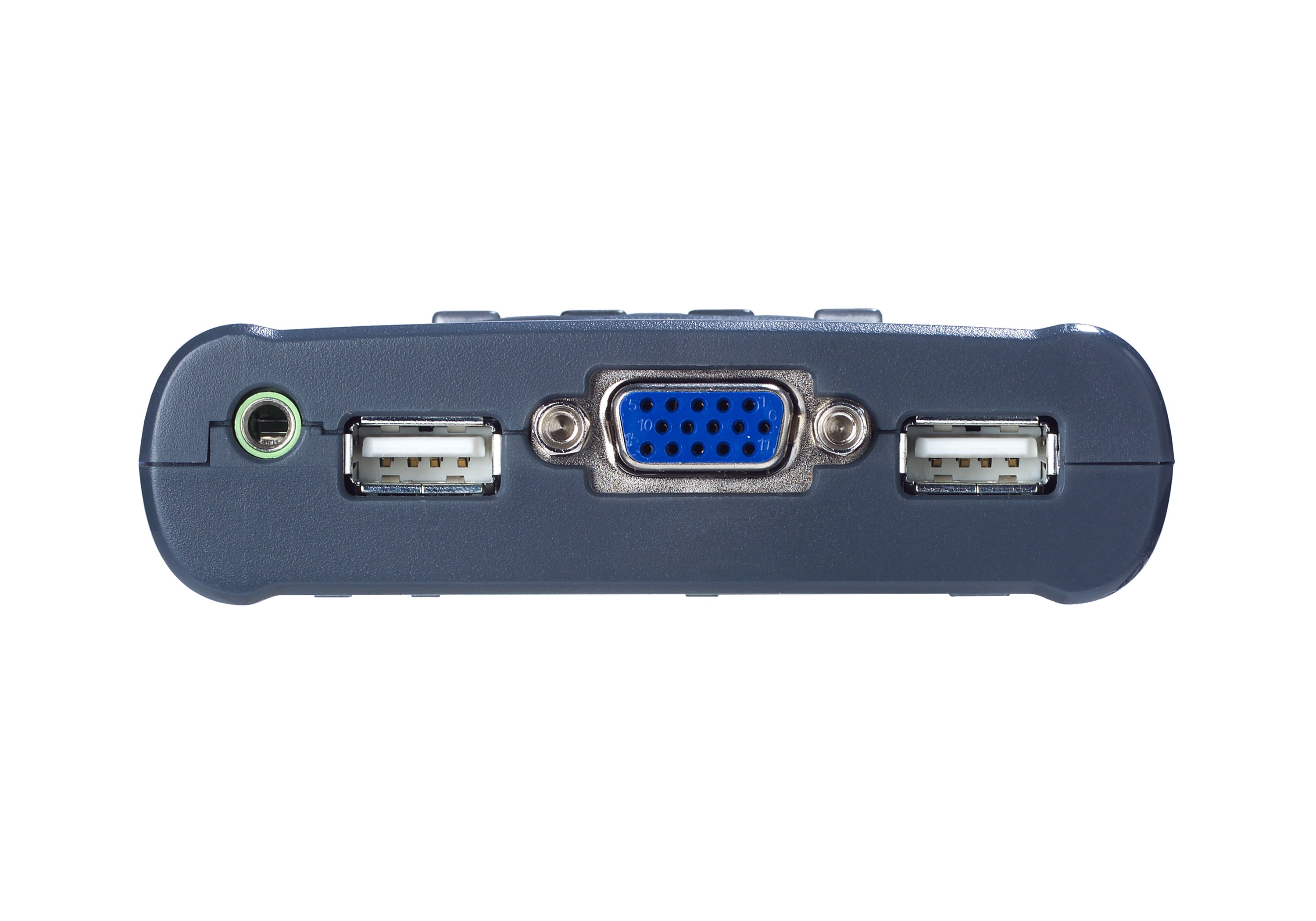

• Connectors



- Console doors:

2 x USB type A female (white)

1 x HDB- 15 female (blue)

1 x Mini female stereo connector (green)

- Doors KVM:

4 x male type A USB (black)

4 x HDB- 15 male (blue)

4 x Mini female stereo connector (green)

• LED



- Selected: 4 (green)

• Cable length



- Computer: 2 x 0,9 m; 2 x 1,2 m

• Emulation



- Keyboard / Mouse: USB

• Video: 2048 x 1536 ; DDC 2 B


• Scan interval: 1 - 99 seconds (default 5 seconds)


• Environment



- Operating temperature: 0 - 50 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical



- Structure: Plastic

- Weight: 0.58 kg (1.28 lb)

- Dimensions (L x P x A): 9.41 x 9.72 x 2.60 cm



Package contents

• 1 x USB switch KVM CS 64 US to 4 ports


• 2 x stickers for shortcut keys


• 1x User instructions
