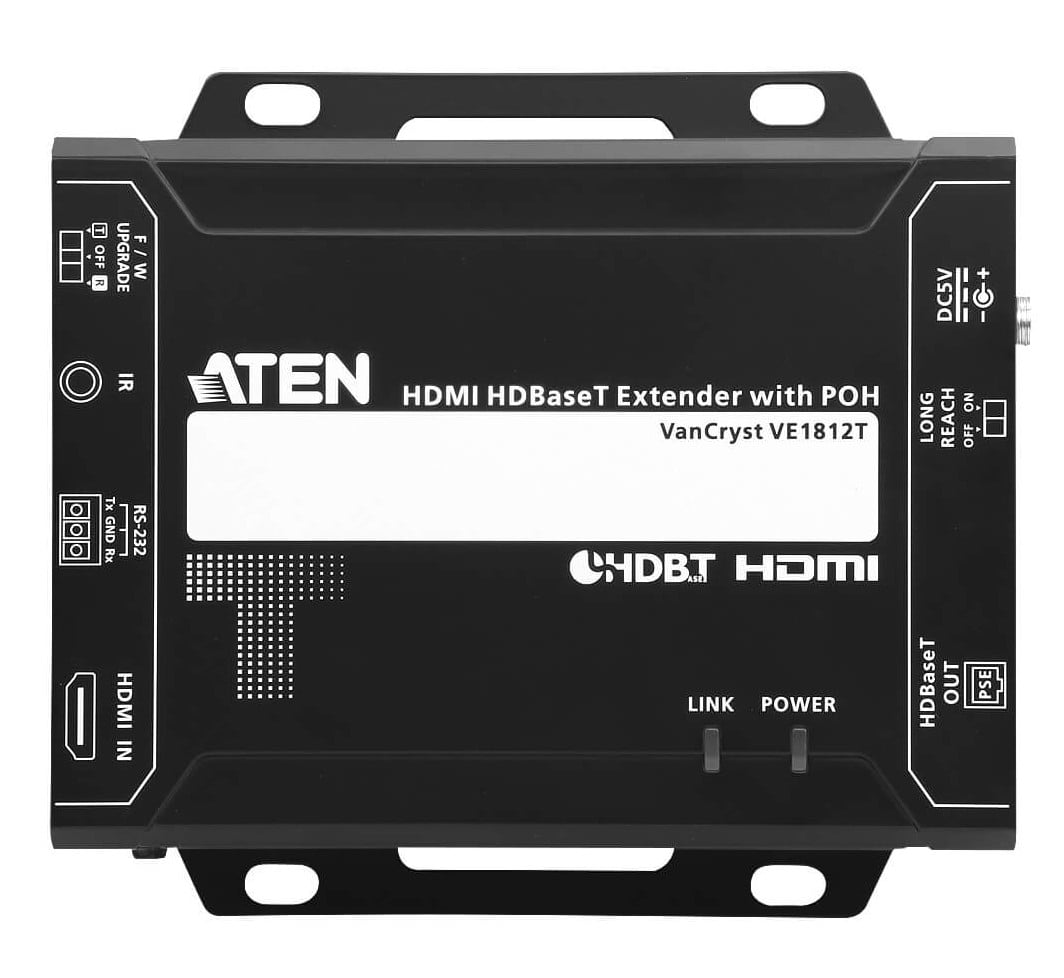

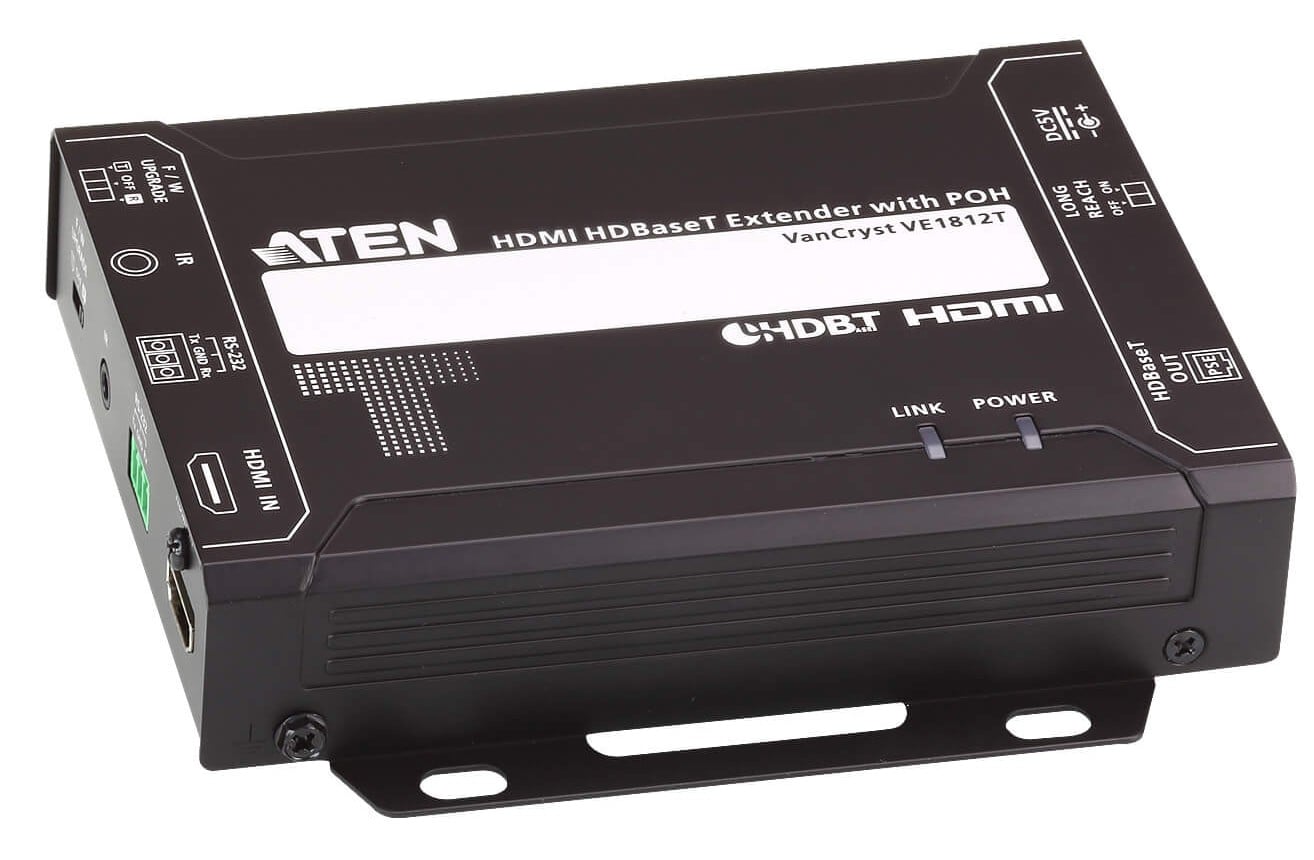

HDBaseT Class HDMI transmitter with POH 4 K to 100 m - ATEN IDATA VE- 1812 T

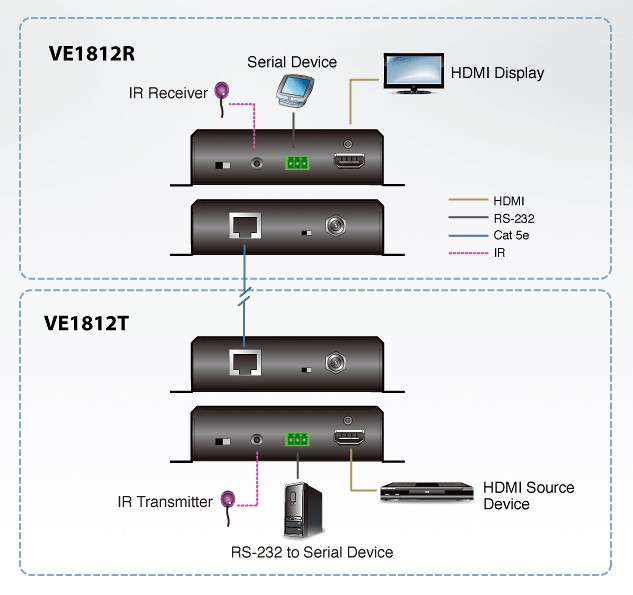

IDATA VE- 1812 T has Power over HDBaseT (POH) that sends power from Tx to Rx via a 5 and/ 6 / 6 Cat cable to without additional power supply. The VE 1812 T supports the pass-through of the RS- 232 and IR signal that allows you to control the HDMI source device from the unità receiver (VE 1812 R) and to access at the same time the HDMI display device from the unità transmitter (VE 1812 T). IR signals can be extended in both directions.



The HDBaseT HDMI VE 1812 T transmitter with POH è compatible with HDMI (3 D, Deep Color, 4 kx 2 k) and HDCP. During the HDMI/ 4 K transmission via a Cat 6 cable to or ATEN 2 L- 2910 Cat 6 , the distance can ` reach up to 100 meters. With the Modelità long distance enabled, the VE 1812 T can ò extend the HDMI signal to 150 m to 1080 p. The VE 1812 T è perfect for digital classrooms, video conference rooms, game or any installation requiring higher quality ` video.



Features

• Connectivityà HDBaseT – increases the distance of an HDMI connection via a Cat 5 and/ 6 / 6 cable to


• Supports long distance HDBaseT – mode up to a maximum flow rate of 150 meters to 1080 p


• Transmission HDMI 4 k x 2 k at a distance up to 100 m via 6 Cat cable to or ATEN 2 L- 2910 Cat 6


• HDBaseT Anti-block – resists signal interference during high quality video transmission via HDBaseT technology


• POH (Power over HDBaseT) – provides power from the transmitter to the long distance receiver via a Cat 5 and/ 6 / 6 cable to


• RS- 232 bi-directional channel – allows connection to serial terminals or serial devices, e.g. touch screens and barcode scanners


• Bi-directional IR channel – bi-directional IR protocol provided by an IR port; IR transmission is processed in one direction at a time


• Installed to rack



Video Input

• Interfaces: 1 x HDMI type A female (black)


• Impedance: 100


• Max. distance: 1,8 m



Video

• Maximum frequency 10,2 Gbps data (3,4 Gbps per line)


• Pixel clock max. 340 MHz


• Conformityà HDMI (3 D, Deep Color, 4 K)


• HDCP compatible


• Consumer Electronics Control (CEC)


• Maximum resolution/distance: up to 4 K to 70 m (Cat 5 and/ 6) / 100 m (Cat 6 a); 1080 p to 100 m (Cat 5 and/ 6 / 6 a)



* 4 K supported:

4096 x 2160 / 3840 x 2160 at 60 Hz (4 : 2 : 0 );

4096 x 2160 / 3840 x 2160 at 30 Hz (4 : 4 : 4 )



Audio

• Input: 1 x HDMI type A female (black)



Monitoring

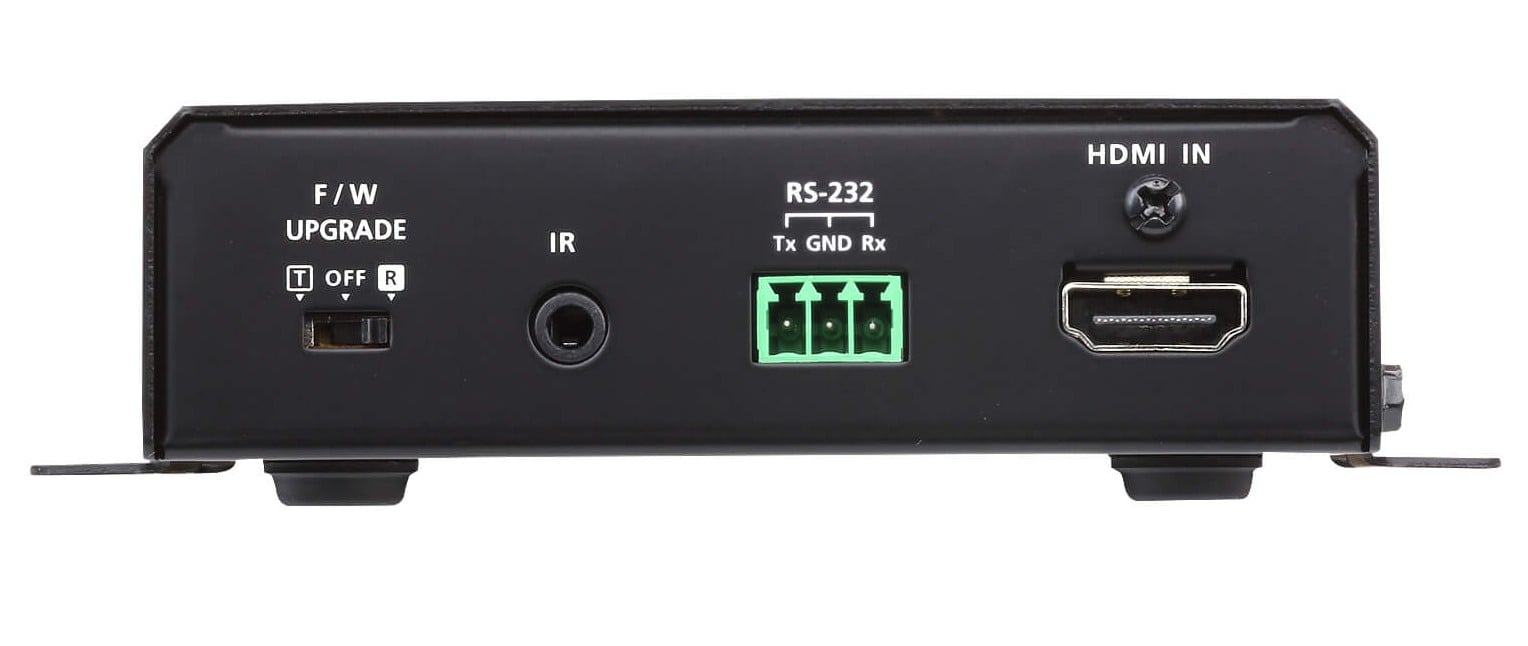

• RS- 232   Connector: 1 x Terminal block, 3 poles


• Velocità in baud: 19200 , Data Bit: 8 ,


• Stop Bit: 1 , no parità and flow control


• IR 1 x female mini stereo connector (black)



Switches

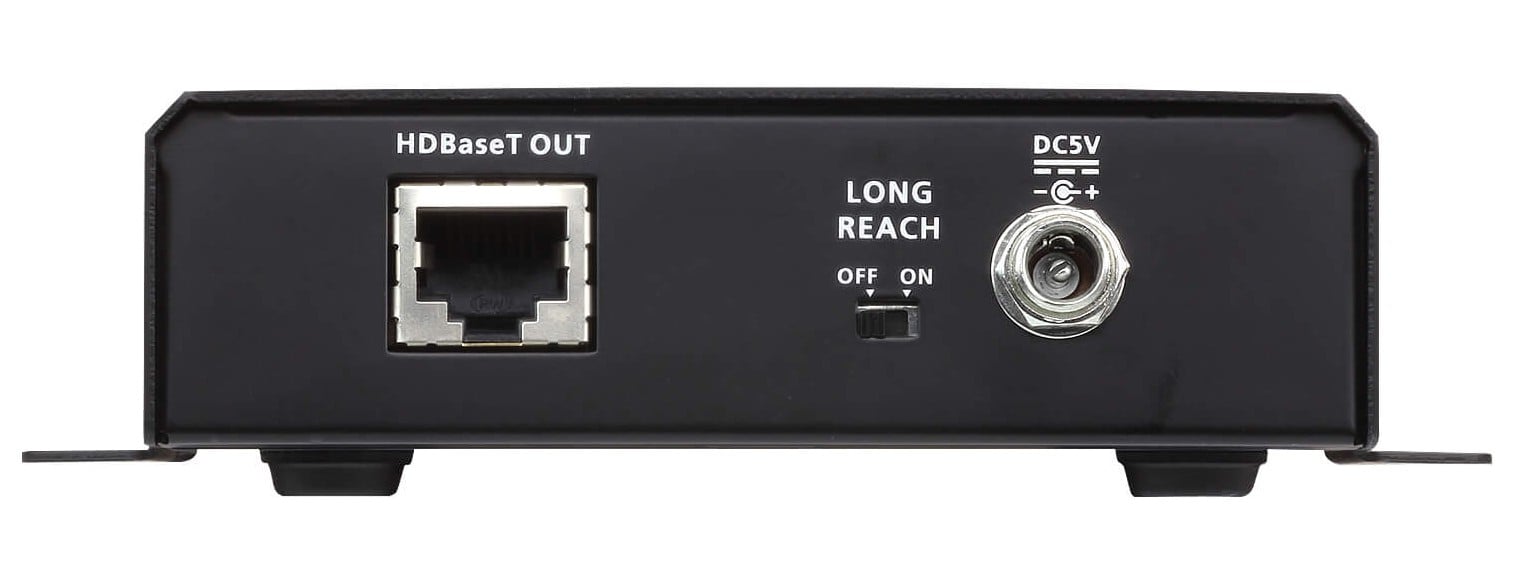

• Mode transition à long distance: 1 x Sliding support - ON/OFF


• Firmware update: 1 x Sliding support - ON/OFF



Connectors

• Power supply: 1 x CC (Black) connector with lock



Consumption

• 5 V CC; 4,3 W



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Physical characteristics

• Structure: metal


• Weight: 0.47 kg


• Dimensions (L x L x A) with bracket: 14.04 x 12.30 x 3.00 cm


• Dimensions (L x L x A) without bracket: 13.60 x 10.10 x 2.90 cm



Package contents

• 1 x HDBaseT HDMI VE 1812 T receiver with POH


• 1 x power supply 0 AD 9 - 1 F 05 - 30 EG


• 1 x RS- 232 terminal block


• 1 x user instructions
