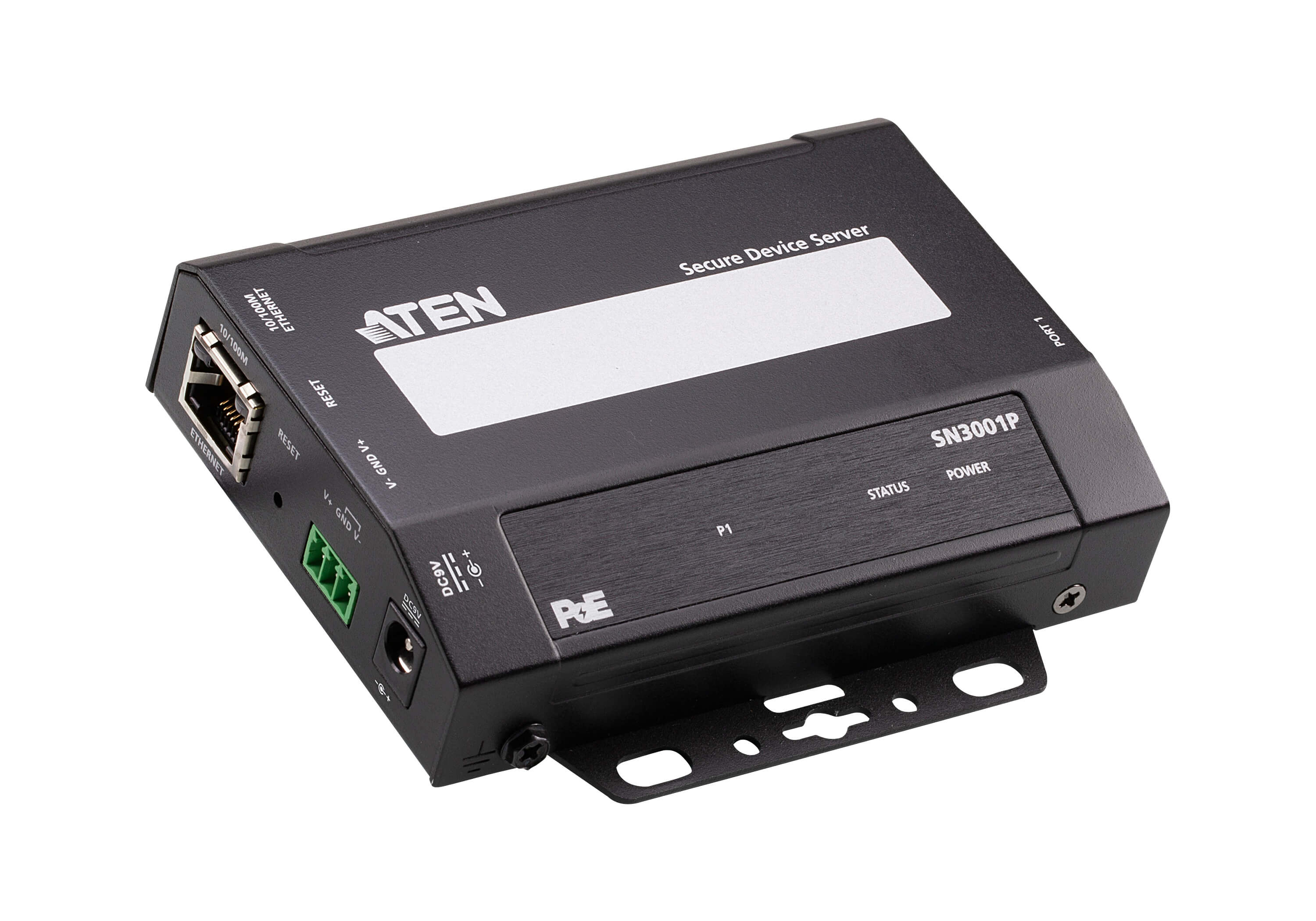

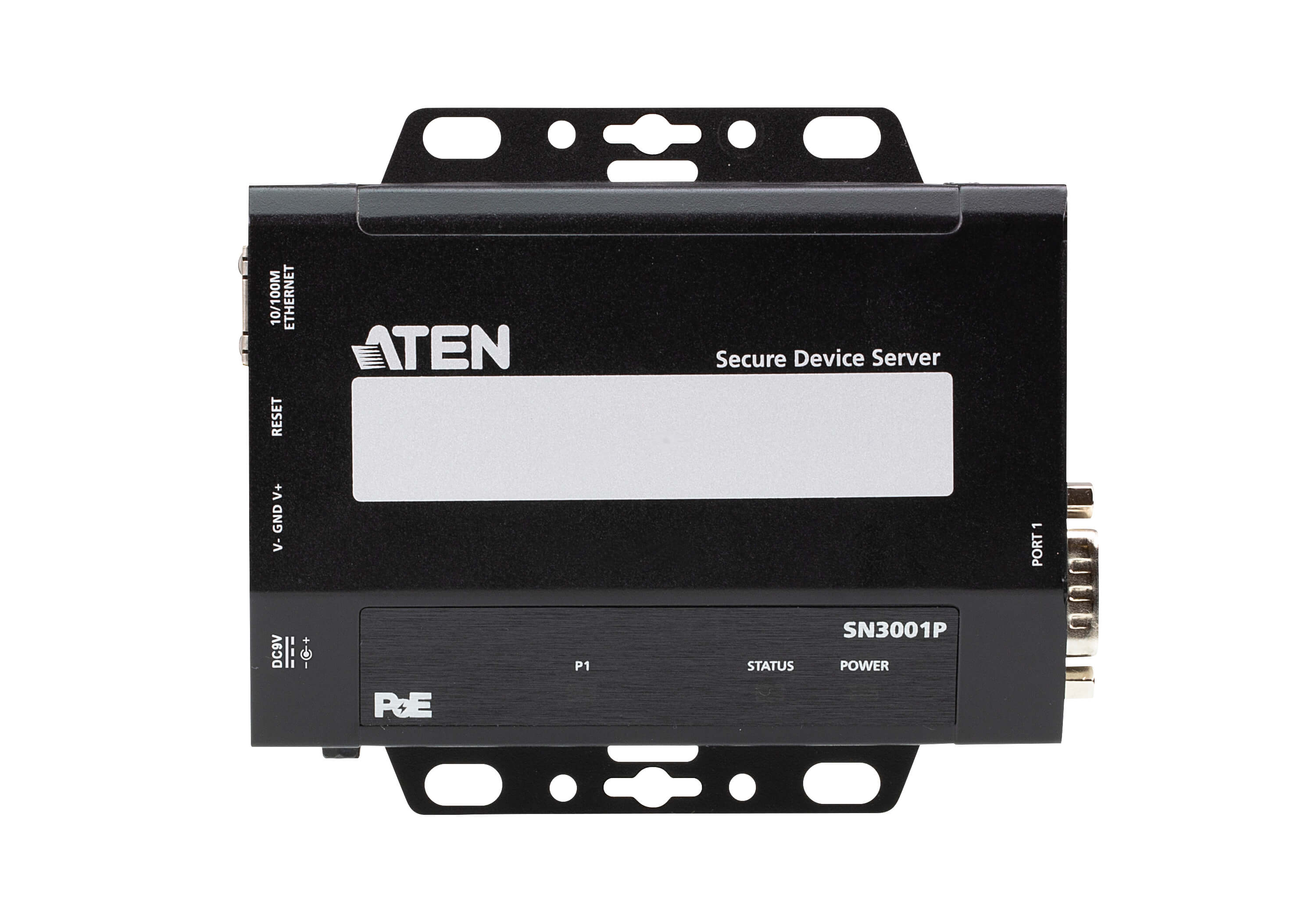

Secure Device Server RS- 232 a 1 Port with PoE - Aten IDATA SN- 3001 P

ATEN's Secure Device Server SN 3000 Altusen™ series are external IP-based network devices that securely connect RS- 232 legacy serial devices to an Ethernet network to remotely access them from a computer located anywhere, allowing you to expand the number of serial ports for any host computer on a network.



The SN 3000 è series is particularly suitable for industrial process control applications, given the abundant use of SCADA (Supervisory Control and Data Acquisition) systems in many industries to collect data from PLCs, meters and sensors through serial ports. The SN 3000 series translates data between serial and Ethernet formats bidirectionally and facilitates access to data of all data collection tools from local and remote sites through an Ethernet network.



The SN 3000 series has numerous modes of operation. It supports Secure TCP Server/Client, Secure Serial Tunneling Server/Client, Secure Real COM and modalità console management for security critical applications, such as telecommunications, access control and remote site management.



Connectivityà serial to Ethernet

• 1 RS- 232 serial port for secure serial data on Ethernet transmission


• Modelità protected operations – Secure Real COM, Secure TCP Server / Client, Secure Serial Tunneling Server / Client, Console Management (SSH) and Console Management Direct (SSH)


• Modelità Standard Operating – Real COM, TCP Server/Client, Serial Tunneling Server/Client, UDP, Console Management (Telnet) and Console Management Direct (Telnet)


• Real COM, Real TTY and Fixed TTY drivers for Windows, Linux and UNIX


• Convenient access to console management via Java (SSH/Telnet) viewer or third-party clients such as PuTTY


• Easy access to the console door via a Java and Sun Solaris Ready display (break-safe)


• More ù users can simultaneously access the same – port up to 16 port connections



Hardware

• redundant power input (power jack and terminal unit) for error-proof power supply


• IEEE 802.3 af compliant PoE power supply equipment


• Peak protection for serial, Ethernet and power supply


• DIN rail mounting, wall mounting, rack mounting and desktop installation available


• Supports speed & agrave; transmission to 110 , 134 , 150 , 300 , 600 , 1200 , 1800 , 2400 , 4800 , 7200 , 9600 , 19200 , 38400 , 57600 , 115200 , 230.4 k, 460.8 k, 921.6 k bps



Security

• Supports secure login from browsers with TLS 1.2 data encryption and 2048 bit RSA certificates


• Configurable user permissions for port access and control


• Local and remote authentication and login


• Authentication of third parties (e.g. RADIUS)


• IP address filter for security protection



System management

• Access to the browser with an intuitive GUI design


• Web-based quick installation wizard for fast configuration


• Terminal-based access with a menu user interface via Telnet / SSH


• Online/offline detection of connected serial devices (including terminal blocks) – automatic sending of event notifications when devices are offline (e.g. power failure) for monitoring device status


• System event logs will be saved to an internal memory or Syslog server


• Port logs will be saved to an internal memory or Syslog server


• Agent SNMP (v 1 /v 2 c)


• – event notification supports SMTP and SNMP Trap email notification (v 1 /v 2 c)


• Upgradeable backup/restore system and firmware configuration


• The port buffer from 64 Kb prevents data loss when the è network is down


• NTP for time server synchronization


• Multilingual web-based GUI



Connectors

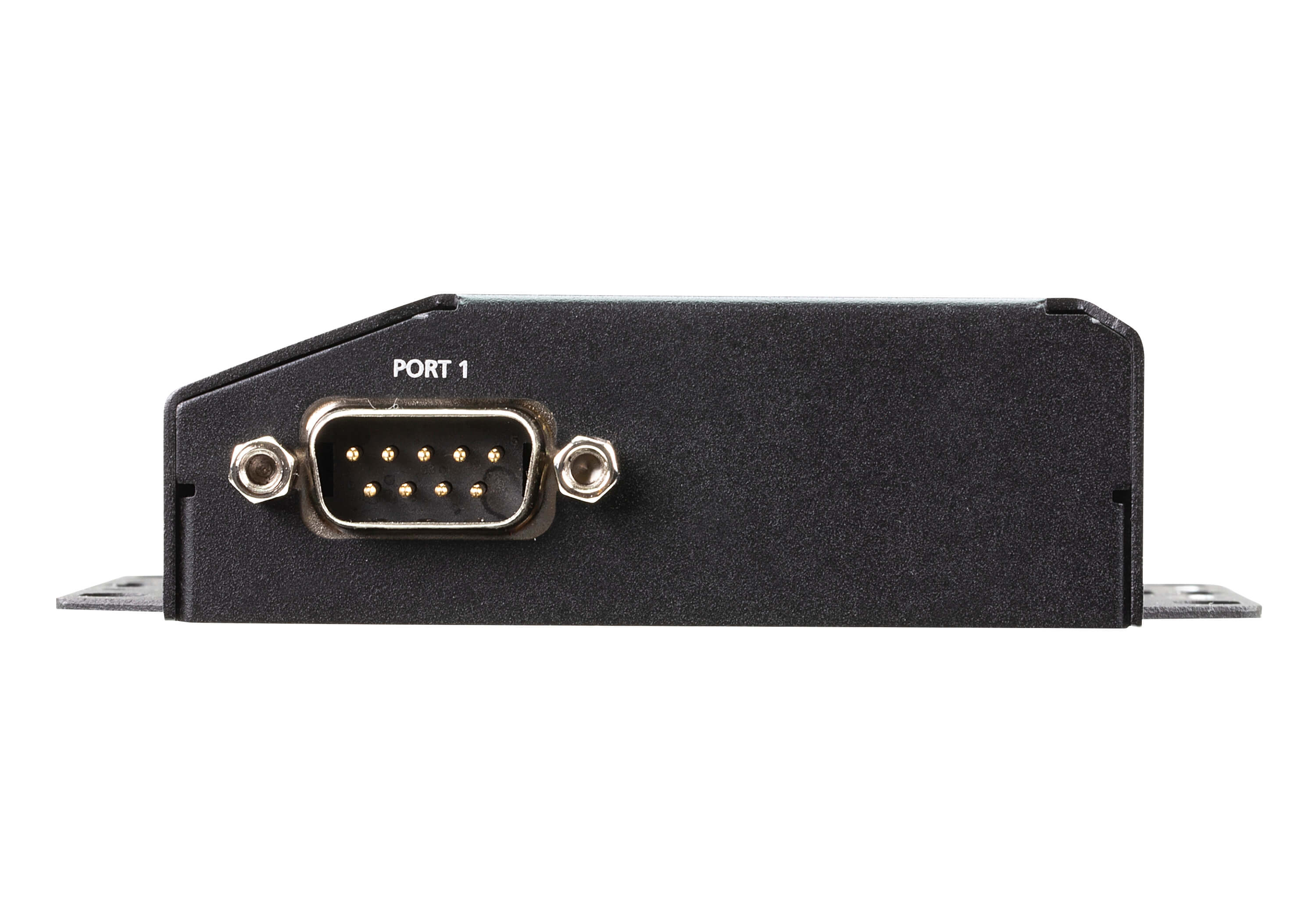

• Serial  1 x DB- 9 male

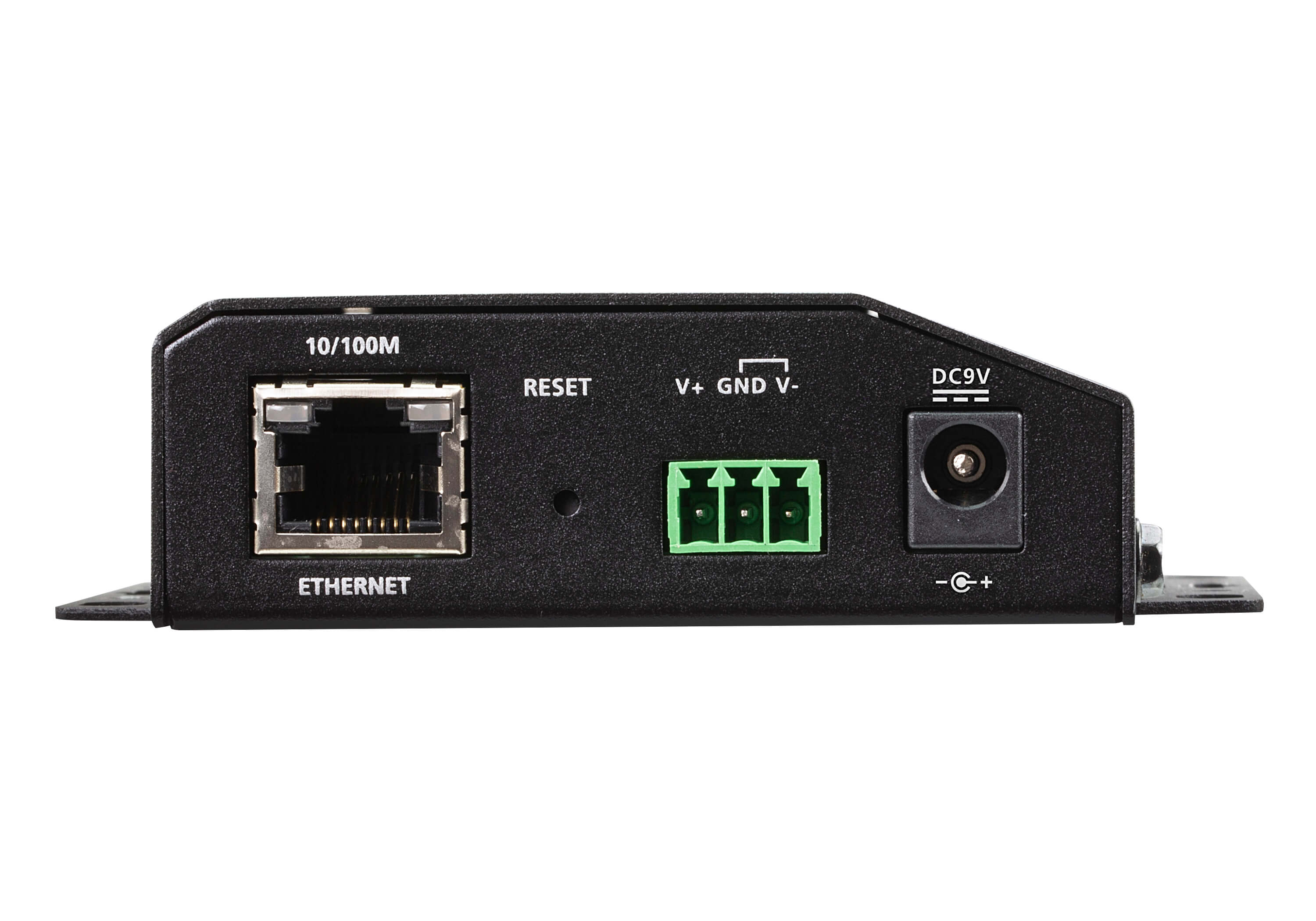

• Network  1 x RJ- 45 female


• Feeding  



1 x Jack DC

1 x 3 pole terminal unit

1 x RJ- 45 (PoE, IEEE 802.3 af)



LED

• Power supply   1 (Green)


• Status 1 (Yellow Green/Red)


• 10 / 100 Mbps  2 (Green/Orange)


• Porte  1 (Green/Orange)



Input voltage

• Jack DC: 9 VCC (optional power adapter)


• Morsettiera: 9 - 48 VCC


• PoE: 48 VCC



Consumption 

• DC 48 V: 0.975 W: 5 BTU


• POE: 1.22 W: 6 BTU



Interfaces

• Serial 



RS- 232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Velocità transmission: 110 , 134 , 150 , 300 , 600 , 1200 , 1800 , 2400 , 4800 , 7200 , 9600 , 19200 , 38400 , 57600 , 115200 , 230400 , 460800 , 921600 bps

Data bits: 5 , 6 , 7 , 8

Parità: None, Equal, Odd, Space, Mark

Stop Bit: 1 , 1.5 , 2

Flow control: RTS/CTS, DTR/DSR, XON/XOFF

• Network 



10 / 100 Base TX

Magnetic insulation protection from 1,5 kV incorporated



Environmental features

• Operating temperature: 0 - 60 °C


• Storage temperature: - 40 - 75 °C


• Humidità: 5 ~ 95 % RH, without condensation



Dimensions

• Width: 9.80 cm


• Depthà: 11.70 cm


• Height: 2.60 cm



Package contents

• 1 x Secure Device Server


• 1 x terminal unit


• 1 x set of feet (4 pcs.)


• 1 x DIN rail mounting kit


• 1 x user instructions
