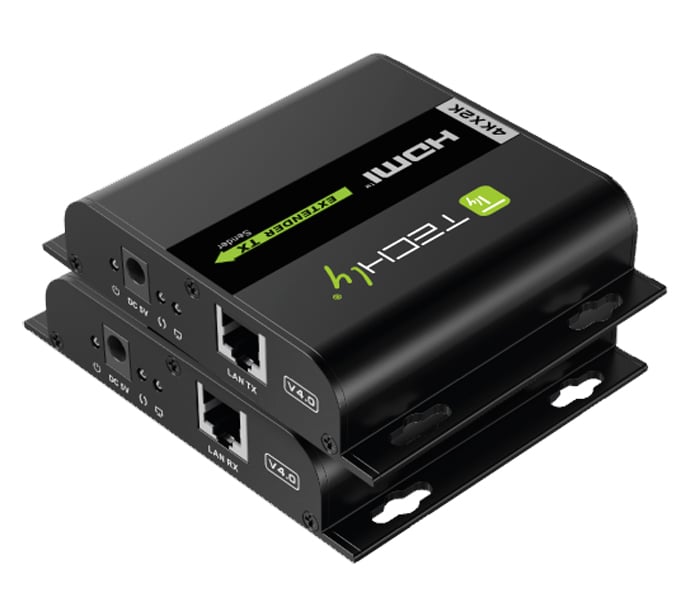

Extender HDMI Over IP 4 K@ 30 Hz on Cat cable 6 up to 120 m - Techly IDATA EXTIP- 3834 KV 5

The HDMI extender over IP extends your HDMI video/audio with resolution of 4 Kx 2 K to 30 Hz up to 120 meters via a single Cat network cable. 6 . And designed as a unità transmitter (HDMI over IP transmitter) and unità receiver (HDMI over IP receiver).
Supports IR signal transmission to control the media playback of the individual source device in the viewing position.

Features

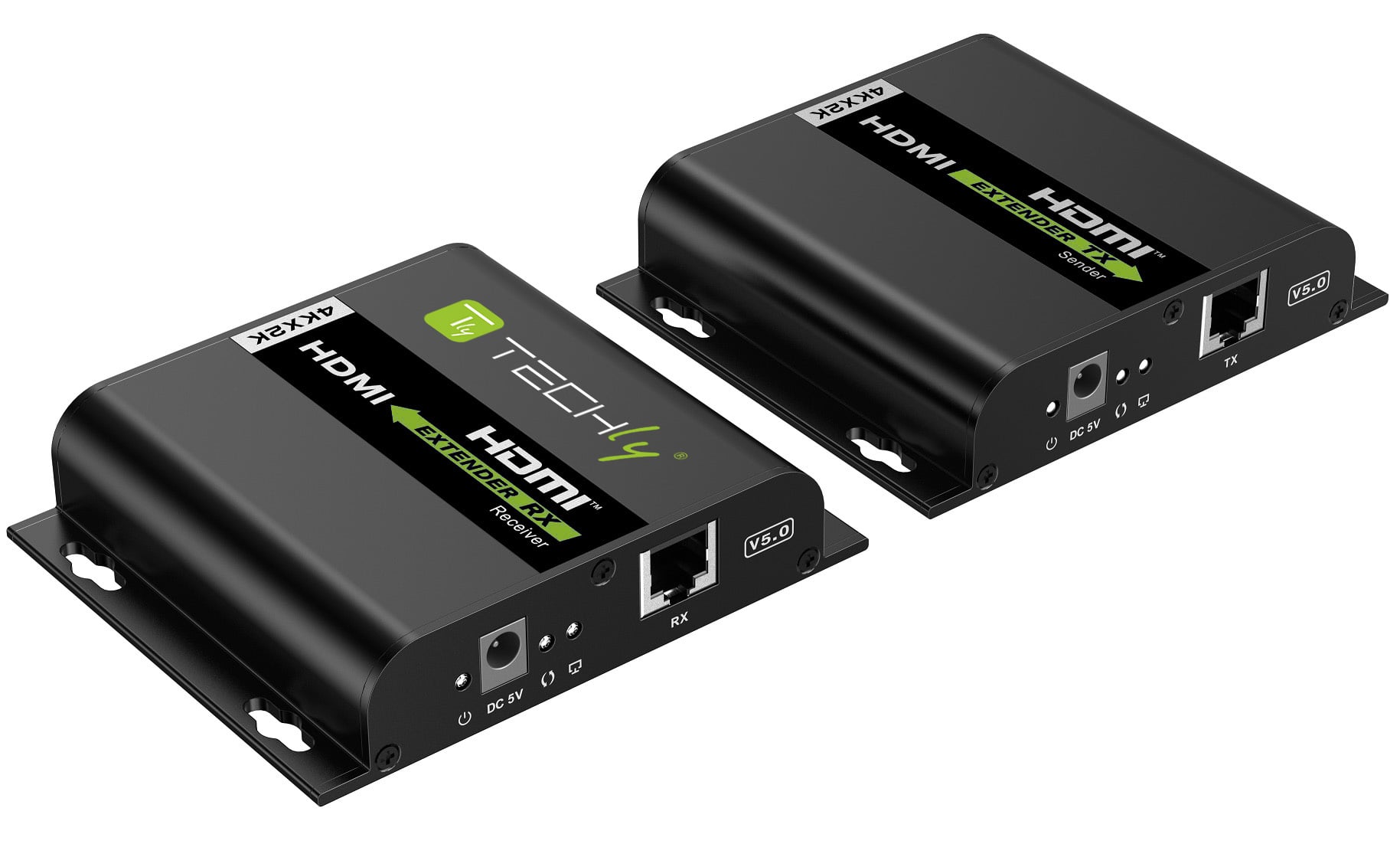

• Includes receiver and transmitter

• Extends HDMI on a single network cable

• Supports cables Cat. 5 E/ 6

• It transmits signal 4 K Ultra HD (4 KX 2 K@ 25 / 30 Hz) up to 120 meters on Cat. 6

• Supports IR passback for easy control
• Compatible with the existing network, does not affect the internet

• HDMI and HDCP
• The design allows wall installation

• Color: black


Technical specifications

• HDMI 1.4

• HDCP 1.4 compatible

• Supported resolutions: 480 p@ 60 Hz, 576 p@ 60 Hz, 720 p@ 50 / 60 Hz, 1080 p@ 50 / 60 Hz, 4 Kx 2 K@ 24 / 25 / 30 Hz

• UTP/STP Cat 5 / 5 and/ 6 network cable

• Transmission distance up to 120 meters to 4 Kx 2 K@ 30 Hz Full HD on single CAT 6

• Supports IR devices from 20 ~ 60 KHz
• Operating temperature: 0 °- 60 °C

• DC power supply 5 V/ 1 A

• Power consumption TX: 3,5 W; RX: 2,5 W

• Weight: TX: 175 g; RX: 170 g
• Color: black


Protection

• Protection against lightning

• Overvoltage protection

• ESD protection


Size TX and RX

• Length: 107,3 mm

• Width: 94,0 mm

• Height: 23,7 mm


Certifications

• CE

• FCC

• RoHS

• RAEE


Package contents

• 1 x HDMI transmitter

• 1 x HDMI Receiver

• 1 x IR blaster extension cable

• 1 x IR receiver extension cable
• 2 x Power supply 5 V 2 A
• 1x User manual
